High Density 1U Rack Mount Enclosure, Tool-less Removable Top Cover, hold up 4 x LGX Cassetts, 96 Fibers(LC)

จีน Shenzhen Unifiber Technology Co.,Ltd รับรอง
จีน Shenzhen Unifiber Technology Co.,Ltd รับรอง
สนทนาออนไลน์ตอนนี้ฉัน

High Density 1U Rack Mount Enclosure, Tool-less Removable Top Cover, hold up 4 x LGX Cassetts, 96 Fibers(LC)

High Density 1U Rack Mount Enclosure, Tool-less Removable Top Cover, hold up 4 x LGX Cassetts, 96 Fibers(LC)
High Density 1U Rack Mount Enclosure, Tool-less Removable Top Cover, hold up 4 x LGX Cassetts, 96 Fibers(LC) High Density 1U Rack Mount Enclosure, Tool-less Removable Top Cover, hold up 4 x LGX Cassetts, 96 Fibers(LC) High Density 1U Rack Mount Enclosure, Tool-less Removable Top Cover, hold up 4 x LGX Cassetts, 96 Fibers(LC)

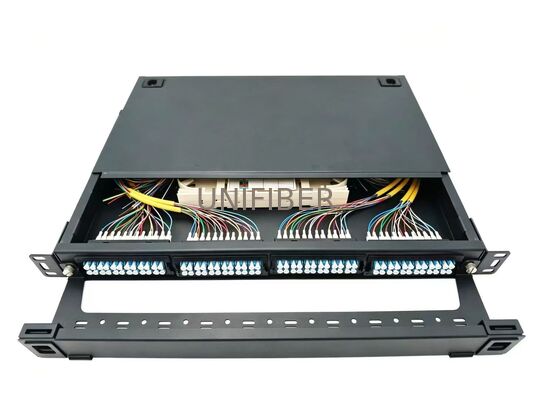

ภาพใหญ่ :  High Density 1U Rack Mount Enclosure, Tool-less Removable Top Cover, hold up 4 x LGX Cassetts, 96 Fibers(LC)

รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: Unifiber or OEM
ได้รับการรับรอง: ROHS
หมายเลขรุ่น: 1u รองรับการติดตั้ง rack
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 5
ราคา: สามารถต่อรองได้
รายละเอียดการบรรจุ: กล่องกระดาษ
เวลาการส่งมอบ: 5 ~ 8 วัน
เงื่อนไขการชำระเงิน: แอล/C, ที/ที
สามารถในการผลิต: 500 ชิ้น/วัน
รายละเอียดสินค้า
ประเภทสินค้า: สิ่งที่แนบมาคงที่ ช่องว่างของตู้แร็ค: 1U
ประเภทการติดตั้ง: แร็คเมาท์ จำนวนไฟเบอร์: สายใยสูงสุด 96
วัสดุ: เหล็ก, พ่นสีฝุ่นสีดำ การติดตั้ง: รางแร็ค EIA 19 นิ้วมาตรฐาน
เน้น:

1U rack mount fiber enclosure

,

tool-less LGX cassette enclosure

,

96 fiber LC patch panel

High Density 1U Rack Mount Enclosure, Tool-less Removable Top Cover, hold up 4 x LGX Cassetts, 96 Fibers(LC)
This 1U rack mount fixed fiber enclosure is engineered to accommodate up to 4 LGX cassettes or fiber adapter panels within a single 1U space. Offering a fully modular solution, it provides exceptional versatility for various fiber optic patching, terminating, and splicing applications. The tool-less removable top cover facilitates convenient cable management and maintenance operations. This enclosure serves as an ideal transition point from backbone cabling to distribution switching, interconnect to active equipment, or as a cross-connect/interconnect in main or horizontal distribution areas.
Key Features
  • Tool-less removable top cover for simplified operation
  • Unique one-piece structure enabling fast deployment
  • Modular cabling solution adaptable to different requirements
  • Provides access for high-density patching systems
Applications
  • Data centers and pre-terminated installations
  • Telecommunication networks
  • Storage area networking fiber channel
  • High density architectures
Technical Specifications
Model Number MPB-1U / 2U
Max Capacity 1U - 96~192 Core / 2U - 192~384 Core
Cassettes Compatible 1U - 4* 12/24 Duplex LC | 2U - 8*12/24 Duplex LC
Connector Type MPO MTP LC SC FC ST
Pre-Connection Optional
Material SPCC (Cold Rolled Steel Sheet)
Finishing Powder Coated Matt Black
Dimension (mm) 482.6*363.2*1U/2U
Operation Temperature -20℃ ~ 70℃
High Density 1U Rack Mount Enclosure, Tool-less Removable Top Cover, hold up 4 x LGX Cassetts, 96 Fibers(LC) 0
